Manual Induction Cap Sealing Machine

Manual Induction Cap Sealing Machine

Manual Induction Cap Sealing Machine

Application And Process

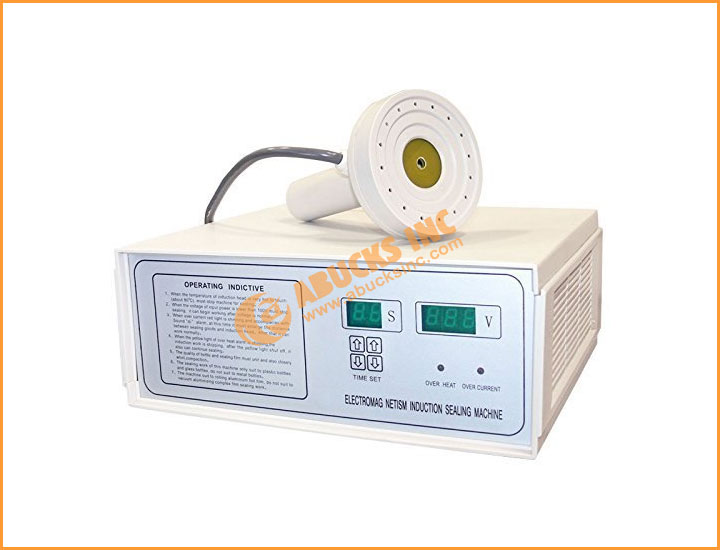

Manual Induction Cap Sealing Machine is a hand held cap wads sealing machine it is very simple to operate which offers flexibility and portability. This machine applies inductive thermal sealing of non metal bottles or jars of plastic or glass bottles. Manual induction sealing machine provides good sealing range from smallest closures to wide mouth containers, closures diameter from 10 mm to 100 mm or 10 mm to 130 mm can be sealed by this machine further this type of induction sealer is best for laboratory and start-up factories with aspiration to increase productivity, this unit does not require special power or water its simple just plug the power supply set the timer to the number of seconds the container requires for strong and secure induction seal. Place the sealing head on the cap and press the trigger on the handle till the timer is set for sealing the wads. This machine works on the principle of electromagnetic induction heating with non contact inductive heating both the inductive film and aluminum foil compound film will be tightly struck on the opening of the sealing container. ABUCKS Inc. Manual induction sealing machine is designed with touch panel and safety features and protection circuits like over temperature and over current and improves the life of machine.


Power 500 watts / 240 V, 50 Hz
Output Power 0.5kw
Sealing time 0.2 to 1.5 second
Speed 20 to 50 caps per minute
Sealing diameter 20 to 100mm
Machine Dimension 340 X 290 X 150mm
Weight 5 Kg approx
