    PHARMACEUTICAL EQUIPMENTS AND PACKAGING MACHINES

Paste Filler

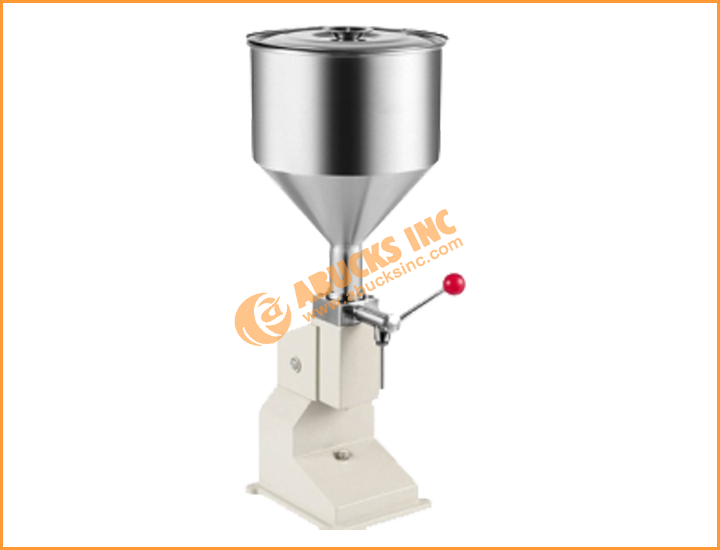

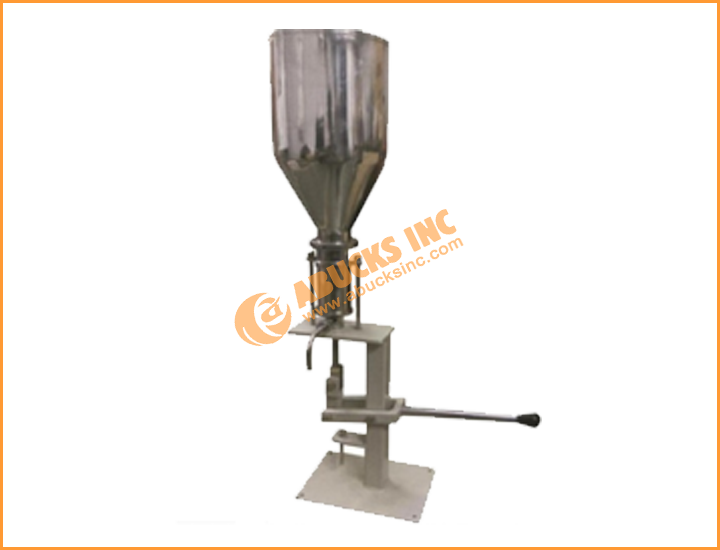

1. Manual Paste Filling Machine

Manual Paste Filling Machine
Manual Paste Filling Machine

This manual operated machine is suitable for all viscous liquid filling and paste filling products like Honey, Gel, Edible Oil, Lube Oil, Cream, Toothpaste, Wax, Batter, Chutney, Mayonnaise, Jam, Peanut Butter, Ginger Garlic Paste Filling etc. This machine is very easy to operate and clean after use all product contact parts are made of stainless-steel food grade material. The piston is pumped by the handle to dispense the preset accurate volume of product. Machine can be customized as per customer requirement available filling range are 5 ml to 50 ml & 100 ml to 250 ml only.

Specifications
Machine Model Manual Paste Filling Machine Single Nozzle
Usage / Application For Filling Paste, Cream, Batter, Peanut Butter
Machine Type Manual Food Grade 304 Grade SS Contact Parts
Filling Range 5 Ml to 50 Ml or 10 Mlto 100 Ml or 100ml to 250ml
Machine Body Mild Steel Painted
Production Speed 10 TO 25 per Minute
Driven Type Manual / Hand Operated
Hopper Size 10 TO 15 LITERS [ Depends on filling size]
Filling Accuracy -/+ 1 %
Machine Dimensions L- 270mm X W-270 mm X H-700 mm

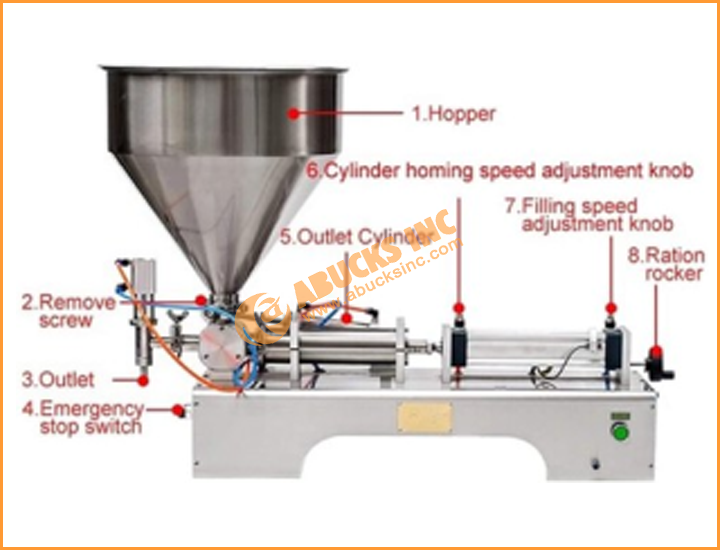

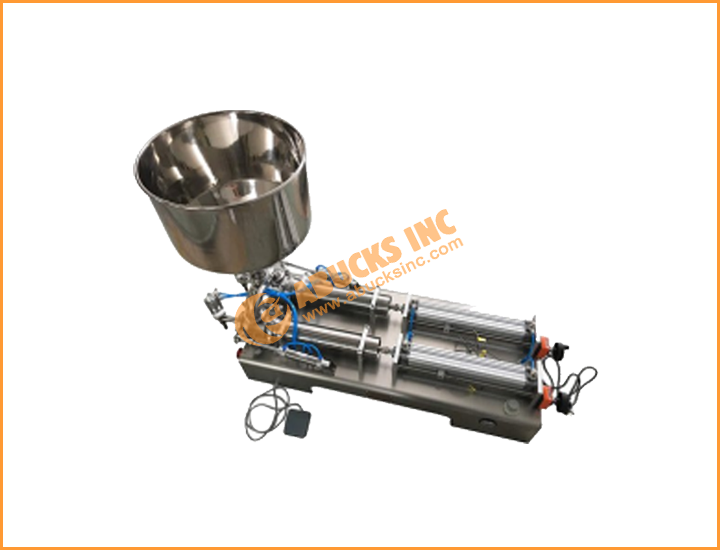

2.Single Nozzle Pneumatic Paste Filling Machine

Single Nozzle Pneumatic Paste Filling Machine
Single Nozzle Pneumatic Paste Filling Machine

Table top Single Nozzle Semiautomatic pneumatic operated stainless steel paste filler suitable for filling all types of paste and viscous liquids, machine is complete stainless steel food grade with 30 -40 liter approx capacity hopper made from high quality stainless steel material ,machine is easy to operate and cleaning. filling accuracy+/-1%,filling volume is very easy to adjust machine can work on auto mode or manual by foot press switch.

Specifications
Machine Type Single Nozzle Pneumatic Paste Filling Machine
Usage/application To Filling Paste and Viscous Liquids
Machine Condition New
Filling Range 10ml to 100ml or 50ml to 500ml or 100ml to 1000ml
Machine Body Stainless Steel and Non Ferrous Material
Machine Type Semiautomatic Pneumatic and Electric Operated
Driven Type Electrical Power 220v /50hz
Driven Type Electrical Power 220v /50hz
Air Pressure 6 CFM [ Required at Working Site ]
Mode Auto or Manual With Pedal Switch
Production Speed 20 TO 40 BPM [ Depends on operator skills and product size ]
Machine Weight 32 KG APPROX.

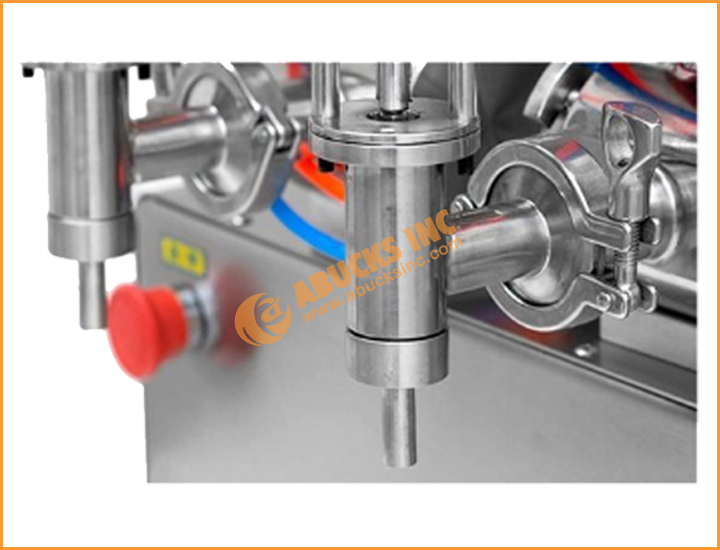

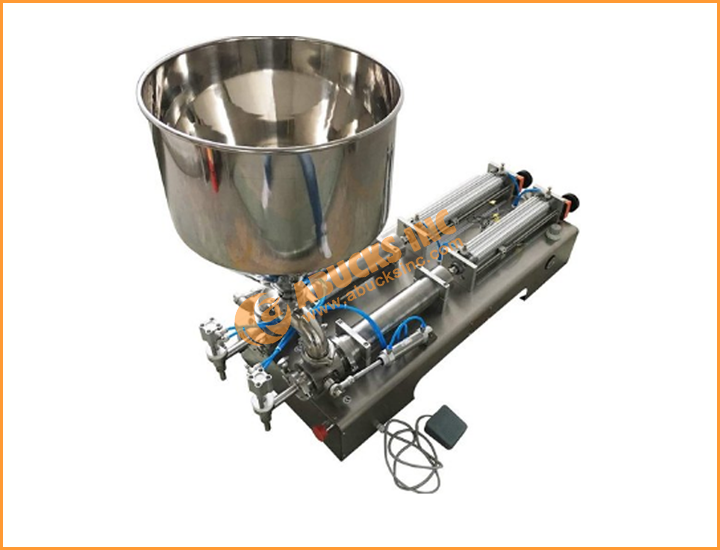

3.Double Nozzle Semiautomatic Pneumatic Paste Filling Machine

Double Nozzle Semiautomatic Pneumatic Paste Filling Machine
Double Nozzle Semiautomatic Pneumatic Paste Filling Machine

Double nozzle Semiautomatic pneumatic operated stainless steel paste filler suitable for paste filling ,requires air pressure 6 cfm,hopper size is 25 to 40 liter capacity and can be removed and cleaned complete food grade model all contact parts stainless steel and non ferrous material. Machine works on auto and foot press pedal switch manual mode. This machine finds application in food product paste filling machine, pharmaceutical paste filling machine, nutraceutical paste filling machine, chemical paste filling machine, chilly paste filling, peanut butter paste filling, cosmetic cream filling machine, toothpaste filling machine, gel filling machine, honey filling machine, wax filling machine, syrup filling machine, sauce filling machine, tomato ketchup filling machine

Specifications
Machine Type Double Nozzle Pneumatic Paste Filling Machine
Usage/application To Filling Paste and Viscous Liquids
Machine Condition New
Filling Range 10ml to 100ml or 50ml to 500ml or 100ml to 1000ml
Machine Body Stainless Steel and Non Ferrous Material
Machine Type Semiautomatic Pneumatic and Electric Operated
Driven Type Electrical Power 220V /50Hz
Air Pressure 6 CFM [ Required at working site ]
Mode Auto or Manual With Pedal Switch
Production Speed 30 to 60 Bpm [ Depends on Operator Skills and Product Size ]
Machine Weight 40 KG Approx
